Technical parameters:
| Platform size | 2*3m（Customizable） |
| Capacity | 3t |
| Division | 1/3000 |
| Indicator | Anti cheating instrument |
| Lifting Height | 1.2m-3m |
| Lifting power | 80#Hydraulic cylinder |
| Power supply/power | 380V/4KW |
| Control mode | Wireless remote control, hand-held remote control, control box |
| Power Distribution Box | Solenoid valve, control contactor |
| Mobile mode | External traction |

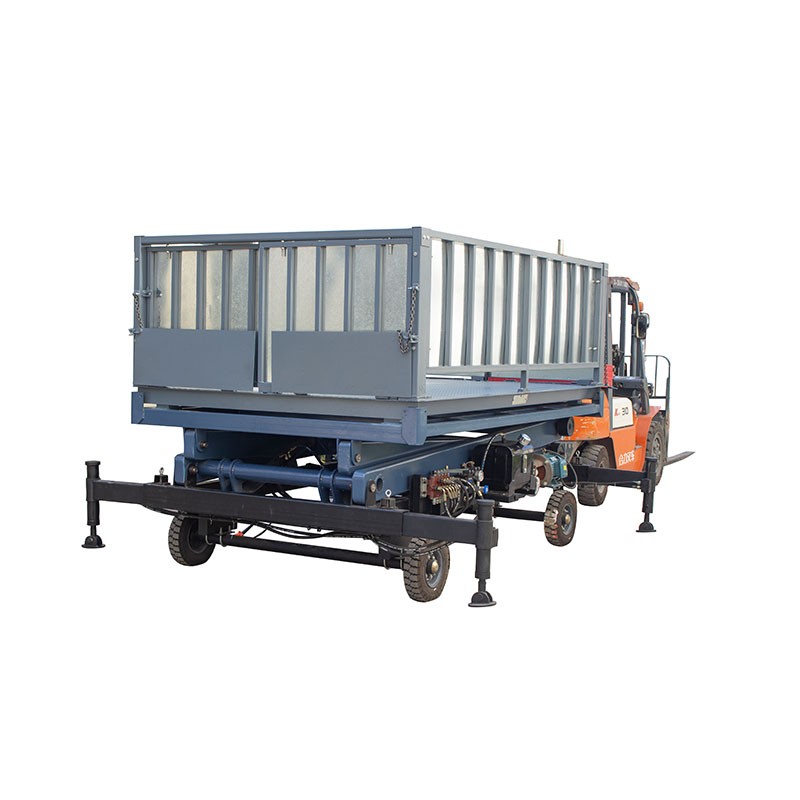

Product introduction:
-
The main worktop frame is welded with channel steel, featuring high strength, good stability and light weight.
-
The worktable is paved with thickened iron plate, which not only ensures the comprehensive strength of the worktable, but also makes the operation safe and convenient. The pin shafts used for the rotating parts connected to the support are all subject to tempering treatment, which greatly improves the mechanical performance indicators on the premise of ensuring the surface hardness. The hydraulic oil cylinder is used for the support feet, which improves the service life of the platform.
-
The hydraulic station is an integrated pump station, which uses a special hydraulic cylinder for fine grinding. It integrates the one-way valve, overflow valve and solenoid valve used by the platform, making it more compact and effectively reducing leakage on the premise of ensuring the performance.
Product application:
It is applicable to loading and unloading goods in farms, factories, warehouses, logistics and other places.
Related products:
Hydraulic lifting scale
