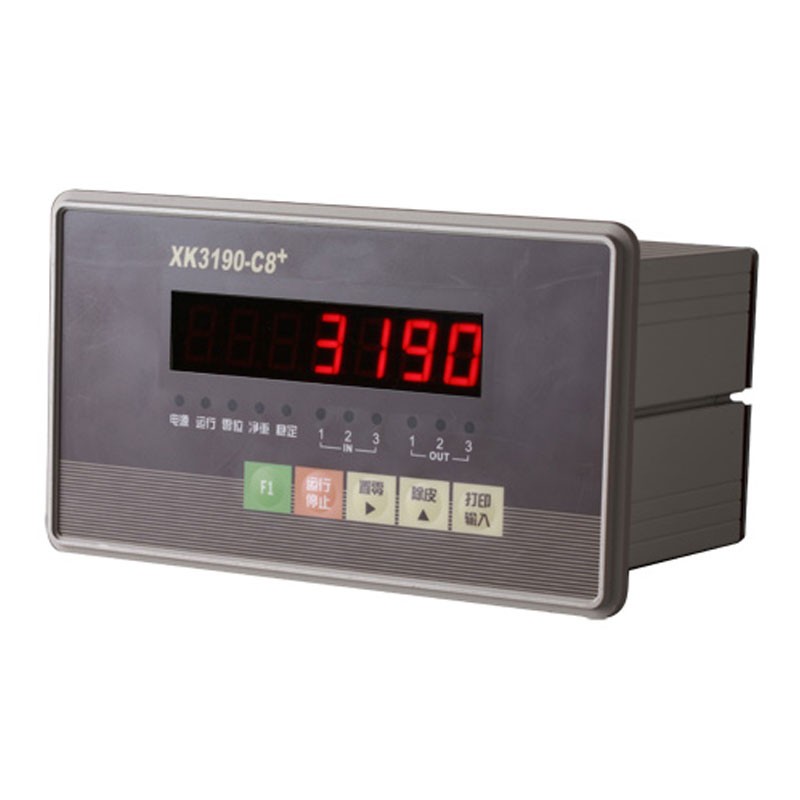

C8+industrial control instrument

It is mainly used for automatic blanking and automatic suspension of industrial powder.

It can be used with computer system.

XK3190-C8+instrument adopts high-speed Σ- △ A/D conversion technology. It is suitable for electronic batching scale, constant value scale, sorting scale and other control occasions, and has the functions of upper and lower limit alarm and peak holding.

New features:

Technical parameters:

• Analog quantity isolation output;

• Analog quantity isolation output; The software operation menu is simplified, and one key is used to enter the target setting state;

• Independent menu mode is adopted, and common parameters and advanced parameters are set independently.

• Circuit optical isolating switch input, three circuit switching value (built-in three circuit relay) output control

• High precision A/D conversion,readability up to 1/30000

• Point nonlinear correction

• There is no need to recalibrate the meter, just input the parameters of the original instrument

• It integrates the functions of addition/subtraction scale/sorting scale/upper and lower limit alarm/peak holding, etc

• Parameters such as quantitative value, advance amount, upper and lower limits, node delay can be set freely according to the application

• 1-2 kinds of ingredients can be selected in addition/subtraction scale mode, and external control/self inspection/free upper and lower limit mode can be selected in sorting scale mode

  • Accuracy class: 3, n=3000

  • AD conversion mode: Σ- △ Conversion mode

  • AD conversion code:24bit

  • Conversion speed: 80 times/second

  • Input signal range：-19mV～+19mV

  • Input sensitivity：≥1uV/e

  • Nonlinear：≤0.01%F.S

  • Full scale temperature coefficient：≤8PPM/ ℃

  • Sensor power supply for bridge：DC：5V；350mA

  • Number of sensor connections：1~81、

  •
